DESCRIPTION
Basic Info

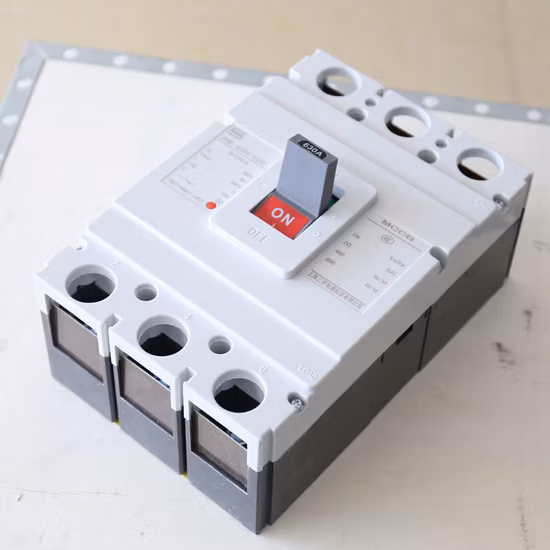

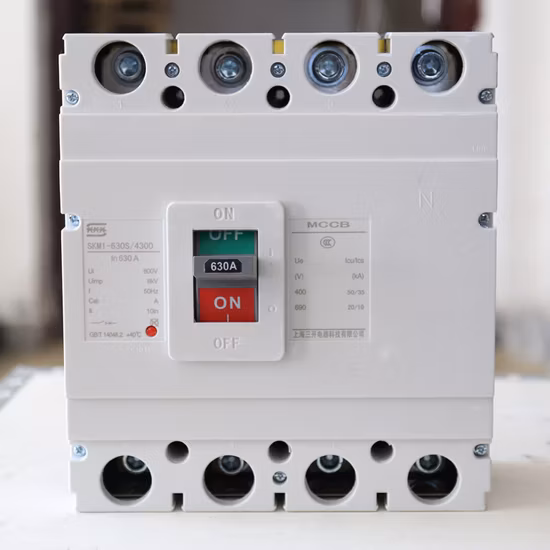

Model NO. | Skm1-630s 4300 |
Breaking Capacity | Low Voltage Circuit Breakers |
Operation | Electric Type |
Speed | High-Speed Circuit Breaker |
Arc-extinguishing Medium | Air |
Installation | Fixed |
Structure | MCCB |
Poles Number | 4 |
Type | Circuit Breaker |
Function | Conventional Circuit Breaker, Circuit-Breaker Failure Protection, Overcurrent Protection, OVP(Overvoltage Protection) |
Certification | ISO9001-2000, CCC |
Transport Package | Carton |
Specification | 50*30*20 |
Trademark | SK |
Origin | China |
HS Code | 8536620000 |
Production Capacity | 5000 |
Product Description
Description:- Ue 690Vbelow
- Ui6-1250Amp
- Standard IEC60947-2
- Certificates ISO9001/CCC
- Insulation voltage 800V
- Protections over load,short circuit, under voltage
- Installation vertical &level
- Breaking capacity 18-65KA
- Limit breaking capacity 25-100KA
- Operation times:6K-1K
- Application:power distribution and motor protection
- Operation methods: handle/electric/rotary handle
- Quality insured:18months
- Packing:standard export carton
- factory form more than 10 years
- Cooperation:OEM/ODM/parts for your DIY products
Related Products
-
CNC Ycm1 Series MCCB Circuit Breakers 63A 100A 125A 250A 400A 630A 800A 3p 4p 400V/690V Electric Moulded Case Circuit Breakers
-
PMC-220 DIN Rail Class 0.5 Self-Powered Single-Phase 63A Direct Input Multifunction Meter for Energy Measurement with RS-485
-
20ka 40ka PV DC Solar Lightning SPD Surge Protector Protective Protection Device
-

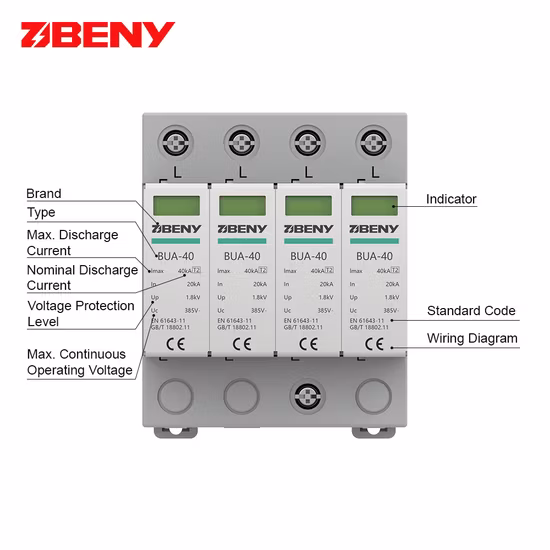

AC 690V Surge Protective Device for PV Solar System
