SKD1-60A Micro Switch Surge Protective Device

Products

SKD1-60A Micro Switch Surge Protective Device

SKD1-60A Micro Switch Surge Protective Device

Product Description --SKD SERIES 1. Basic Specification: 2. Product Pictures: 3. Production line:4. More products pictur

Send your inquiry

DESCRIPTION

Basic Info
Model NO. SKD1-60A
Certification CE, CCC
Brand Aisikai
SPD 60A
Poles 4p
Transport Package 1PC/Carton
Specification 10*8*7cm
Trademark AISIKAI
Origin Yangzhou City, China
HS Code 8536500000
Production Capacity 6000PCS/Month
Product Description
--SKD SERIES
1. Basic Specification:

Technical Parameter ModelSKD1-D10SKD1-D20SKD1-C30SKD1-C40N-PESKD1-B60SKD1-B80SKD2-60SKD2-80SKD2-100SKD3-100SKD3-120SKD3-150
Maximum Continuous Operating Voltage Uc(V~) 420255 420
Voltage Protection Level Up(V~)Kv≤0.7≤1.0≤1.2≤1.5≤1.5/<1.8<1.8/2.0≤1.5≤2.2≤2.5≤2.2≤2.5≤3.0≤2.5/3.0/3.2/3.5
Nominal Discharge Current In(8/20μs)5KA10KA15KA20KAlimp30KA40KA30KA40KA60KA60KA80KA100KA
Maximum Discharge Current Imax(8/20μs)10KA20KA30KA40KA12.5KA60KA80KA60KA80KA100KA100KA120KA150KA
Respomse Time ns<25<25<25<25<25
Test standard GB18802/IEC61643-1
L/N The Cross Section of L/N line 6mm² 10,16mm²16,25mm²25/35mm²
PE the cross section of PE line 10mm²10,25mm² 25mm²25,35mm²35mm²
Fuse or switch(A)10A,16A16A,25A 32A63A63,125A
Operating Environment ºC -40ºC~+85ºC
Relative Humidity (25ºC)95%≤95%
Installation standard Rail 35mm
Material of outer Covering Fiberglass


2. Product Pictures:

SKD1-60A Micro Switch Surge Protective Device

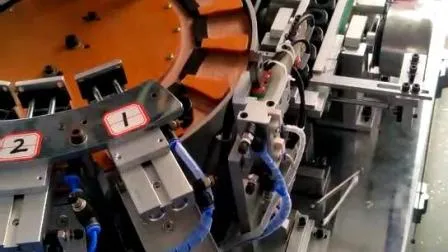

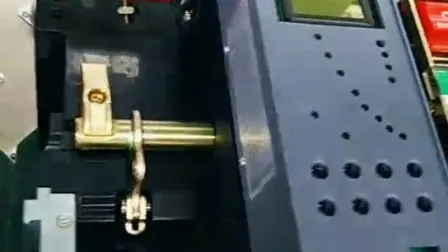

3. Production line:4. More products pictures5. Other your products series:
ACB/ MCCB/MCB/ELCB/ATS-CB grade/LIS/VPS/CPS/SPD/IPM/BAC/Switch box.etc.

6.Q&A:
1) Q:Why your company ? A: Aisikai is a professional manufacturer , we have our own product lines to control the quality and goods are following international standards, IE, CE, ISO9001 etc.2) Q: Your address ? A: Locates in No.5 Chengji Industrial Town,YiZheng City, JiangSu Province3) Q: What's the ATS guarantee? A: 2 years warranty. If customer's problem, then customer burden. If our problem, then we send new goods to customer to replace asap. 4) Q: What's about MOQ? Delivery time ? A: 1pcs for ATS. Normally less than 1000A ATS with stock, quick support. 6) Q: What's the payment term? A: Normally 100% T/T in advanced payment. If big order then about 50% advanced payment, balance before shipment and also can accept LC7) Q: Which port of loading ? A: Shanghai Port8) Q: Website? A: Website: www.switchshops.com , welcome to contact us anytime.
